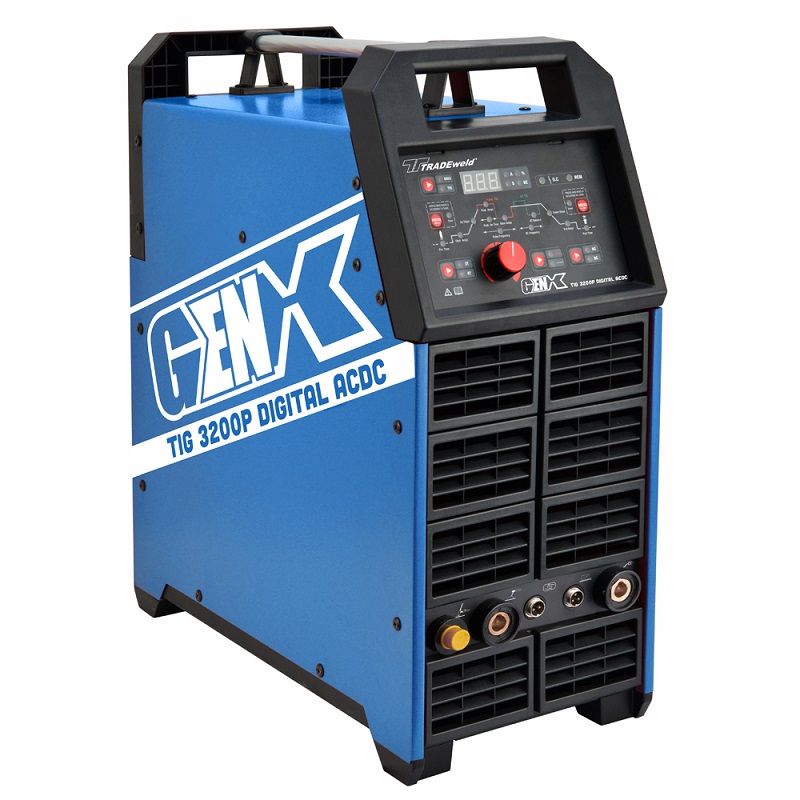

Welder TIG 320 AMP Genex 380V

Digital Display
32 Bit High Speed MCU Control
Store Welding Parameters
Tig Pulse Mode
4T / 2T Function
With Pre Flow Arc Start Current Up
Slope Peak Current Base Current
Arc End Current Downslope Pulse
Frequency Pulse Ratio Post Flow
Clearance Width AC Frequency
Foot Pedal Control
MMA Mode With VRD Control
Over Current & Overheating Protection
PROCESS TIG • MMA
ELECTRODE SIZE 2-6mm
MAX STEEL THICKNESS 12mm
AMPS: TIG / MMA 5-320 20-270
VOLTS: TIG / MMA 22.6 33
DUTY CYCLE 60%@315A / 100%@202A
VOLTS 380V±15% 50/60HZ
AMPS: TIG / MMA 13 14.9
DIMENSIONS (MM) L-560xW-245xH-585
INDUSTRIAL Use NET WEIGHT (KG) 33.2
